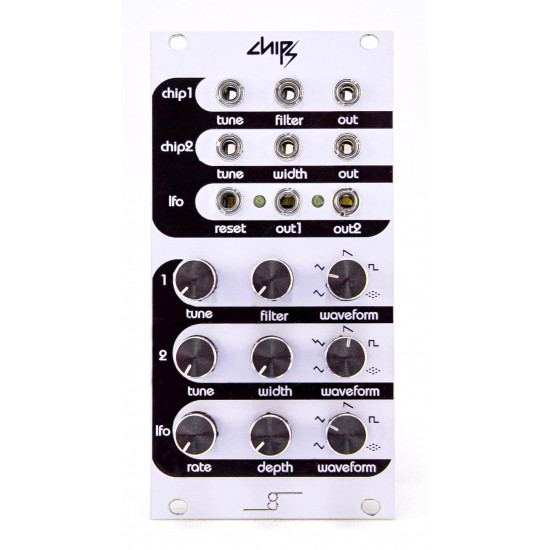

Cre8audio Chipz

The Chipz module is a dual voltage-controlled oscillator / low-frequency oscillator module. The voltage-controlled oscillators are derived from classic lo-fi sounding wave shapes, designed to be full of character. Cre8Audio’s product description says “we started with the idea” that Chipz would be a 3 oscillator synth that reminds the user of “the sound of their Commodore, Atari, and NES systems.”

Beyond “chiptune” sounds, each Chipz module VCO features 5 different waveshapes – sine, triangle, saw, square, and noise. Users can morph between waveshapes with the turn of a knob. VCO #1 – Chip1 has an integrated filter, VCO #2 – Chip2 has integrated width control, aka duty cycle of the waveform can be modulated to shape the sound. Chipz dual LFO also features 5 different waveshapes, sine, triangle, saw, square, and random. Users can change between each of these waveshapes with the turn of a knob.

Width = 12hp
Depth = 30mm

Waveforms
chip1 - sine, triangle, saw, square, noise
chip2 - sine, triangle, saw, square, noise
LFO - sine, triangle, saw, square, noise

0-5V voltage range LFO output 1
0-5.8V voltage range LFO output 2

Frequency range of oscillators
chip1 - out 91 ~ 1.47K
chip2 - out 91 ~ 1.47K
lfo - out1 75.75m ~ 2
lfo - out2 370m ~ 10

Input voltage range of oscillators = 0-10V
Minimum voltage required to set LFO trigger input high = 0.7 ~ 5V
