Vpme.de T43 Precision Adder

precision voltage adder / 43 halftone transposition unit

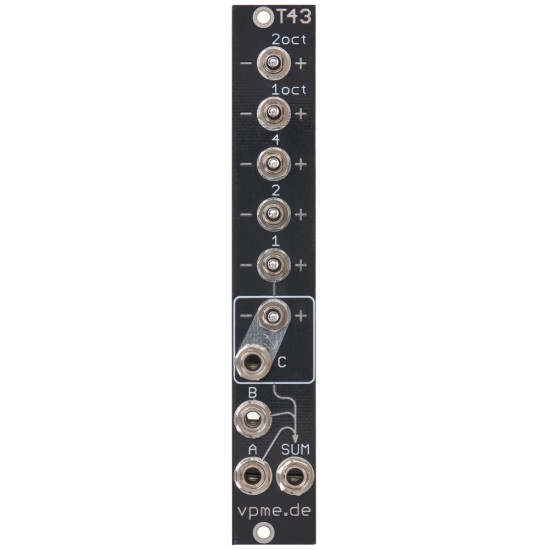

the SUM output gives the sum of CV (and audio) inputs A and B and can add or subtract CV input C. the switches allow to add or subtract 1, 2, 4, 12 or 24 semitones so a total of 43 semitones or 3.5 octaves can be added or subtracted from the CV sum.

e.g to add a fourth (5 semitones) use switches +1 and +4, to add a minor seventh (10 semitones) use switches +1oct and -2

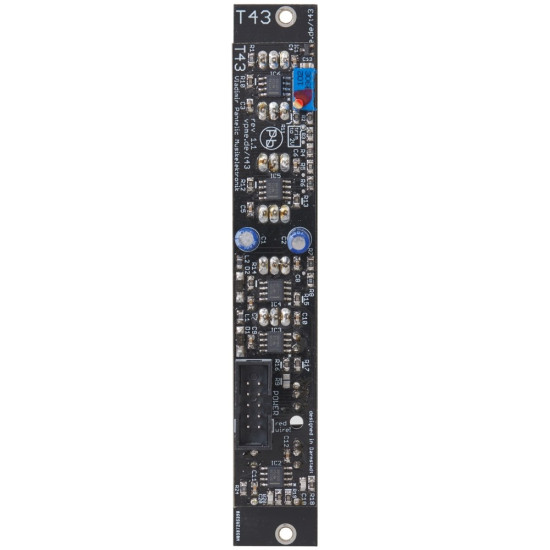

T43 uses precision opamps and voltage references in order to give you perfect tuning across the whole transposition range

https://vpme.de/t43/

• 20 mA +12V
• 10 mA -12V
• 0 mA 5V
• 20 mm deep
